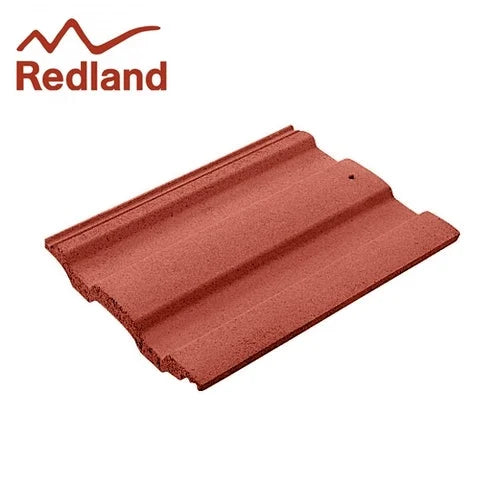

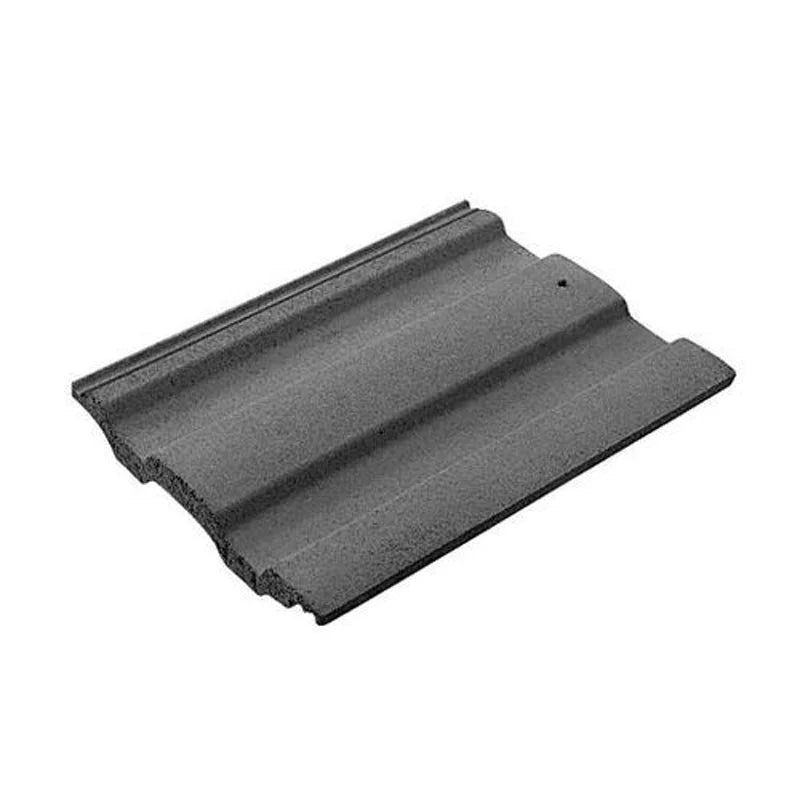

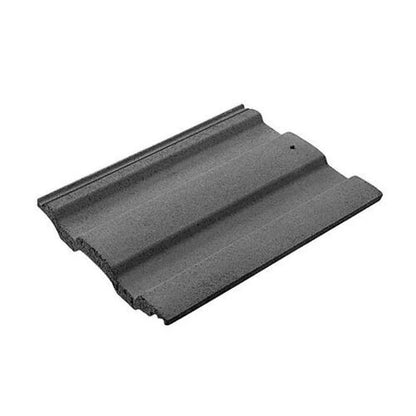

A neat, low profile tile designed to blend unobtrusively into its surroundings and giving a more contemporary feel to a roof with a square edged profile.
As with all interlocking concrete tiles, Renown is quick and easy to lay but also provides exceptional wind and driving rain performance.
Properties
Size: 418mm x 330mm.
Minimum pitch - Through coloured. 17.5° at 100mm headlap. 22.5° at 75mm headlap.
Minimum pitch - Granular. 22.5° at 100mm headlap. 30° at 75mm headlap.
Maximum pitch: 90° - subject to fixing specification. Maximum headlap: 125mm. Minimum gauge: 293mm. Maximum gauge: 318mm below 22.5° / 343mm at 22.5° and over. Tile thickness: 26mm. Coverage: 10.5 tiles/m2 at 318mm gauge / 9.7 tiles/m2 at 343mm gauge. Weight: 4.58 tonnes/1000.
Batten size: 38mm x 25mm - rafter centres up to 450mm. 50mm x 25mm - rafter centres up to 600mm.
Battens required: 3.15m/m2 at 318mm gauge. 2.92m/m2 at 343mm gauge.
Nail size: 50mm x 3mm. Tile finish: smooth - through coloured. Tile profile: profiled.
