Morrissey

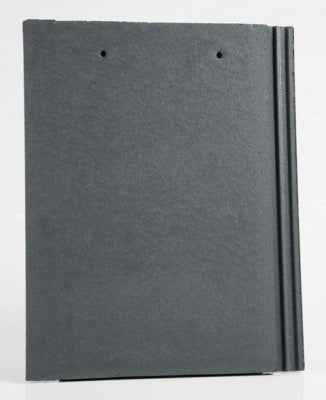

Morrissey Milford Flat Concrete Roof Tile
Morrissey Milford Flat Concrete Roof Tile
Regular price
£1.15 GBP
Regular price
Sale price
£1.15 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Delivery estimate 10–14 working days
Couldn't load pickup availability
| Size of Tile Overall | 420 x 330mm |
| Minimum Pitch | 17.5 degrees (for rafter length over 8 metres or sites with a high degree of exposure please contact us) |
| Maximium Pitch | 90 Degrees (subject to fixing specifications) |
| Headlap (minimum) | 75mm above 25 degrees // 100mm at 25 degrees or below |
| Gauge (maximum) | 345mm |
| Cover width of one tile (nominal) | 295mm |
| Covering Capacity (Headlap 75mm) | 9.8 tiles / sq metre |
| Covering Capacity (Headlap 100mm) | 10.6 tiles / sq metre |
| Hanging Length (nominal) | 400mm |
| Weight per 1000 (approx) | 5.5 tonnes |
| Recommended Batten size (see BS5534) . Rafter centres up to 600mm | 50 x 25mm |
| Recommended Nail size | 50mm x 3.35mm |
The Milford Interlocking Concrete Slate is the ideal choice for those wishing to balance quality & durability of a concrete product with affordability. This through colour, smooth finish roof tile gives the appearance of a slated roof but with the strength & longevity that is associated with a tiled roof. The flat interlocking design, is enhanced by the even courses of broken bonding.
