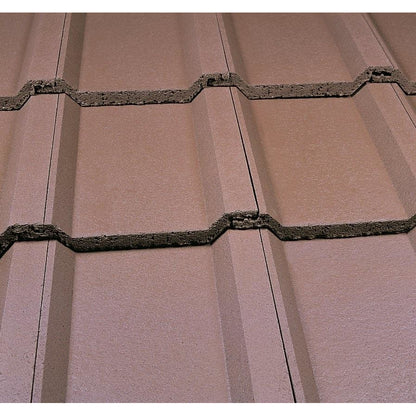

Marley Wessex Interlocking Roof Tile - Pallet of 192

Key Features:

• Material: Concrete
• Colour: Colour Options Available
• Size: 420mm x 330mm
• Suitable for Pitches: 15° to 44°
• Tile Thickness: 29mm (nominal)
• Covering Capacity: 9.7 tiles per m² (75mm Headlap) / 10.5 tiles per m² (100mm Headlap)
• Tiles per pallet: 192

Description:

The Marley Wessex is a simple, large format, low pitch roof tile solution. Featuring a subtle square profile which offers a fantastic minimalist style for a low pitched roof. Designed to shed water efficiently, the Marley Wessex is the perfect solution to avoid a large profile tile on a low pitched roof.

The Marley Wessex has been a popular choice for uses on roof pitches as low as 15°, the interlocking edges mean that this tile can be laid easily, saving time and money.

With a thickness of 29mm (nominal), these tiles provide optimal performance with a minimum roof headlap of 75mm and a maximum roof gauge of 345mm. They have a net roof covering capacity of 9.7 tiles per square metre at a 75mm headlap or 10.5 tiles per square metre at a 100mm headlap.

Per net roof, you will require 2.9 linear metres of battens per square metre at a 75mm headlap, or 3.1 linear metres at a 100mm headlap. It is recommended to employ 38mm x 25mm battens (fixed to BS 5534) when the rafter/supports do not exceed 450mm centres. If you have larger rafter/supports that do not surpass 600mm centres, you can opt for 50mm x 25mm battens (fixed to BS 5534).
