Marley Mendip 12.5 Low Pitch - Pallet of 192

Key Features:

• Material: Concrete
• Colour: Colour Options Available
• Size: 420 x 330mm
• Suitable for Pitches: 12.5° to 44°
• Tile Thickness: 27mm
• Covering Capacity: 10.5 tiles /m² (100mm headlap)
• Tiles per pallet: 192

Description:

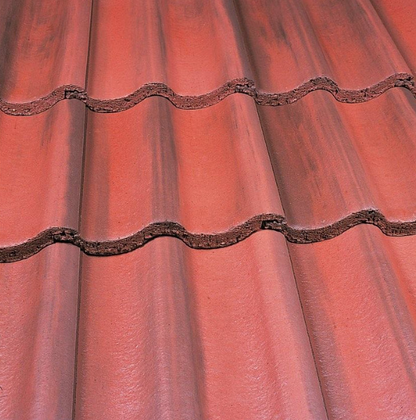

Ideal for one-storey extensions and refurbishments, these Mendip interlocking concrete tiles from Marley are specifically engineered for applications as low as 12.5°. Renowned for their captivating s-curve profile, the classic beauty of pantiles adds an elegant touch to any roofscape.

These Mendip tiles feature a unique double pantile design, characterised by graceful lines that create an instant visual appeal, exuding rustic charm. In comparison to conventional plain tiles, concrete interlocking tiles boast a sleek and polished aesthetic that will immediately enhance your structure.

3.1 linear metres per m² of battens are required at a 100mm headlap (net, roof). Fixed to BS 5534, the recommended batten size is 38mm x 25mm for rafters/supports not exceeding 450mm centres and 50mm x 25mm for rafters/supports not exceeding 600mm centres. These Mendip concrete tiles are suitable for a minimum roof headlap of 100mm and a maximum roof gauge of 320mm.
