Marley Acme Heritage Single Camber Plain Tile - Pallet of 1260

Key Features:

• Material: Clay

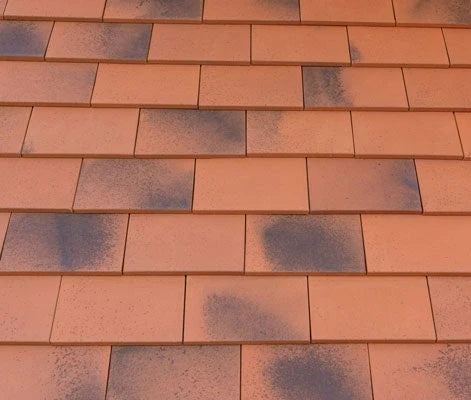

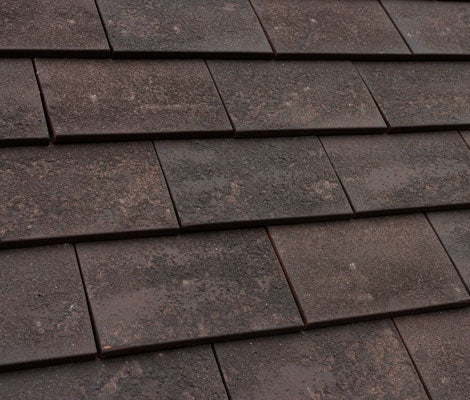

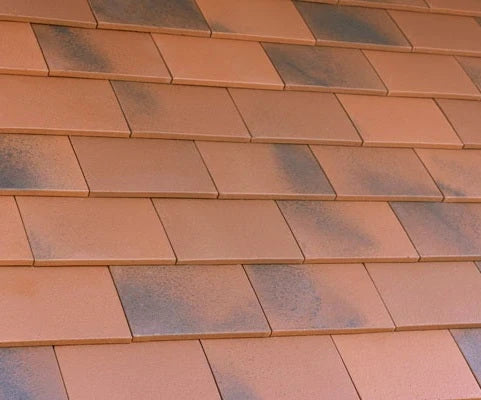

• Colour: Colour Options Available
• Size: 265mm x 165mm
• Suitable for Pitches: 30° to 90°

• Tile Thickness: 11mm (nominal)
• Covering Capacity: 60 tiles per m² @ 100mm Gauge (Roof) / 53 tiles per m² @ 115mm Gauge (Vertical)
• Tiles per pallet: 1260

Description:

Designed for pitches from 30° to 90°, Marley's machine-made Acme Single Camber Clay Plain Tile is an excellent choice for any roofing project. These tiles offer superior design versatility and allow you to form both traditional and contemporary low-pitch roofs, adding the warm charm of clay. A varied range of traditional clay blends that offer an aged character, unique to every roof.

For centuries, clay plain roofing tiles have adorned modern and traditional homes, showcasing their iconic red clay roofs. By including unique finishes, clay tile roofing materials deliver a distinct look for your property with machine-made or handmade variants designed to last.

These tiles have a nominal thickness of 11mm and can be fastened using the recommended 38mm x 2.65mm nails, while still retaining peak performance with a minimum roof headlap of 65mm (Roof) 35mm (Vertical).

Per net roof, you will need 10 linear metres of battens per square metre at a 100mm gauge (Roof), or 8.7 linear metres at a 115mm gauge (Vertical). It is advisable to use 38mm x 25mm battens (in compliance with BS 5534) when the rafter/support distances do not exceed 600mm centres.
