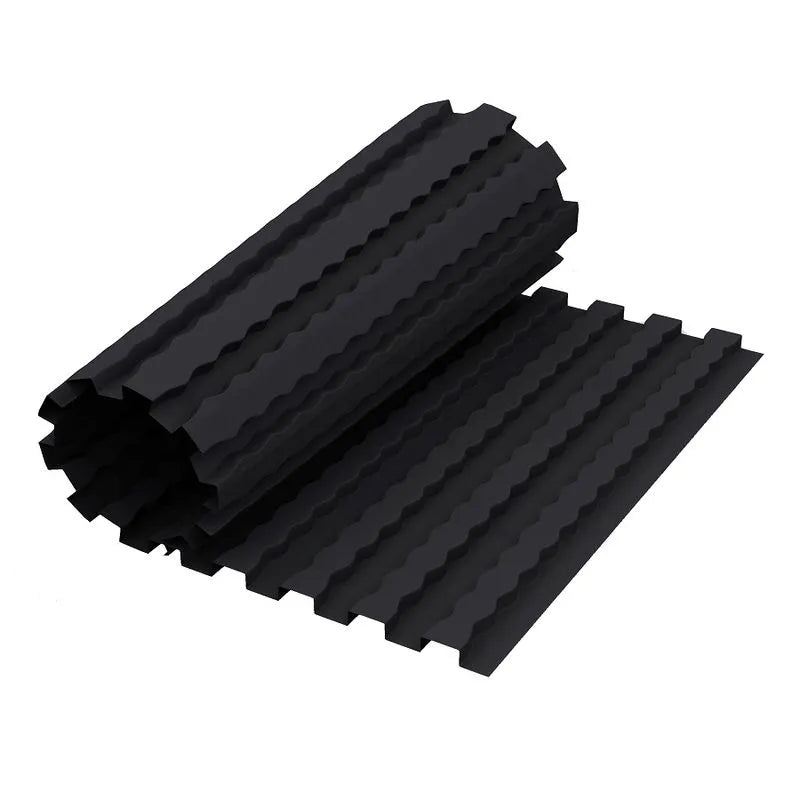

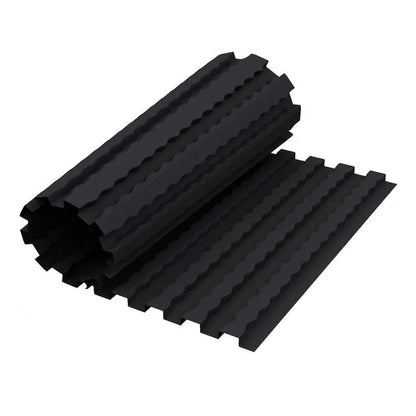

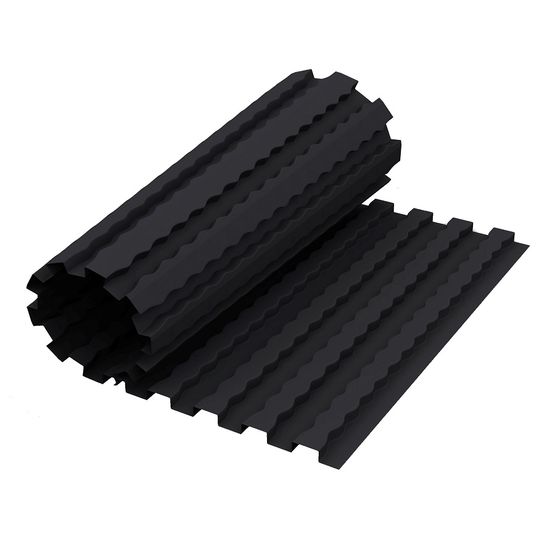

Timloc Eaves Vent Roll Out Rafter Tray - 800mm x 6m - Pack of 6

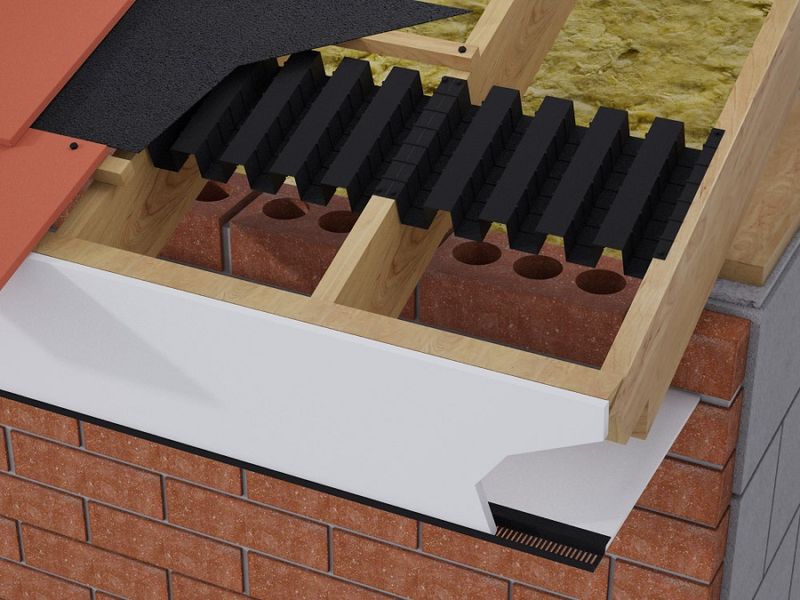

The Timloc rafter roll out rafter tray six pack is designed to maintain a clear path of air into the roof void in the eaves to prevent the build-up of condensation. Specified by many builders. It offers a ventilation air path into the roof, which critical to prevent roof-space condensation is maintained to ensure that space is not blocked by roof insulation. Suitable for new build and refurbishment work.

Dimensions:

• Depth - 25mm
• Width - 800mm
• Length - 6m

Benefits

• Efficient secondary roof ventilation product
• Easy to install
• Durable, totally resistant to decay and easy to fit
• Supplied in convenient 6m rolls

Applications

• For new build and refurbishment projects
• For pitched roof eaves ventilation
• On roofs with spacings of between 400mm and 600mm centres

Single row of 600mm roll panel coverage suitable for:

Insualtion depth - 225mm with a minimum roof pitch of 17.5 dregress, an insulation depth of 250mm with a minimum roof pitch of 20 degrees, an insulation depth of 300mm with a minimum roof pitch of 22.5 degrees and an insulation depth of 400mm with a minimum roof pitch of 30 degrees.
