Redland Rosemary Clay Classic Roof Tile -Pallet 840

Redland Rosemary Clay Classic Roof Tile -Pallet 840

Regular price £785.00 GBP
Regular price Sale price £785.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Delivery estimate 10–14 working days

  • 60 tiles per m²
  • Tiles are made from clay
  • Size: 268mm x 165mm
  • Minimum pitch 35°
  • Batten required: 10m per m² (25x38)

BMI Redland Rosemary Clay Classic Plain Tile

The Rosemary name has become synonymous with clay plain tiles, known for adding character and distinction to pitched roofs for more than 175 years. Manufactured from only the finest clays, the Rosemary roof tiles are offered in a range of attractive finishes to match any aesthetic requirements.

The current Rosemary roof tiles range of single and cross camber tiles combine the quality of hand crafted clay with the reliable benefits of modern machine made techniques. You can rest assured knowing that these Rosemary roof tiles have been rigorously tested before being made available for purchase.

This process involves placing the Rosemary roof tiles in a Group wind tunnel where combinations of persistent rain and high wind are used to determine the tiles’ performance with respect to weather tightness and wind loading. All Rosemary roof tiles will meet the requirements of BS 5534 (the British Standard for Slating and Tiling).

Installation will be quick and easy when using the classic Rosemary clay plain tiles and the roof surface will be instantly weatherproofed. On top of being a strong resistant roofing solution, a home using Rosemary clay plain tiles will also be visually pleasing.

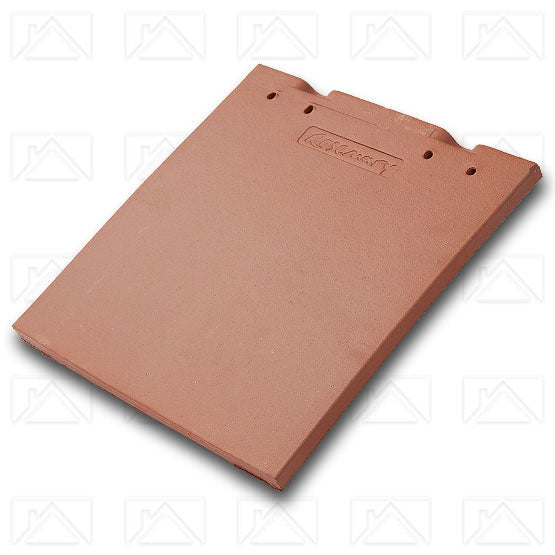

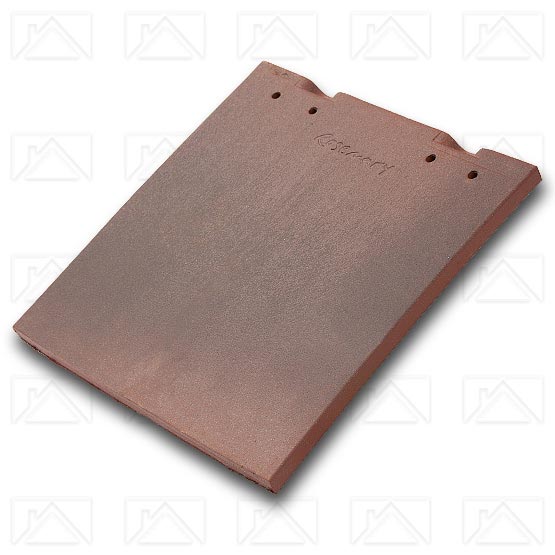

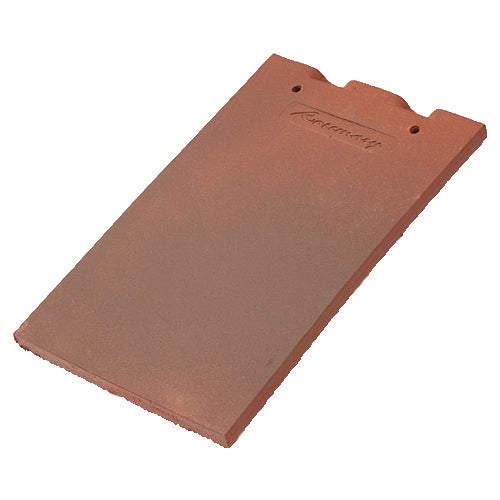

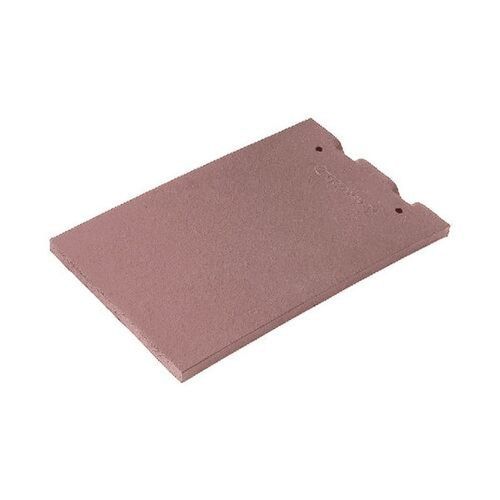

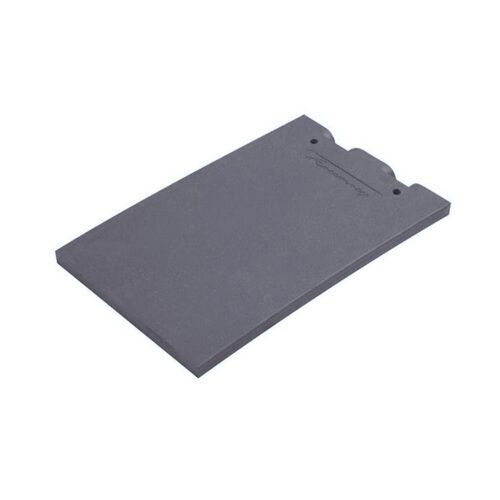

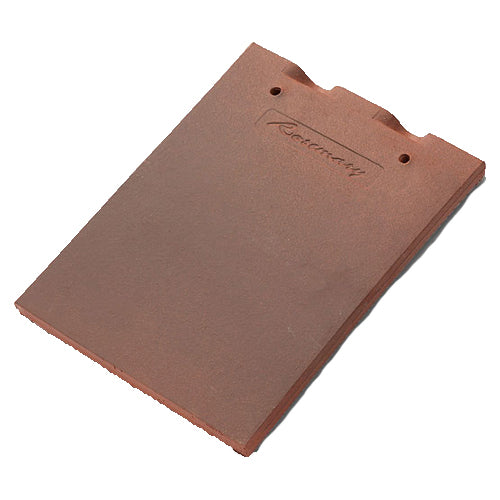

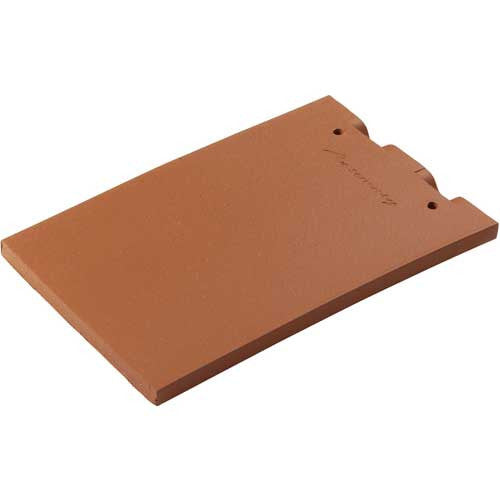

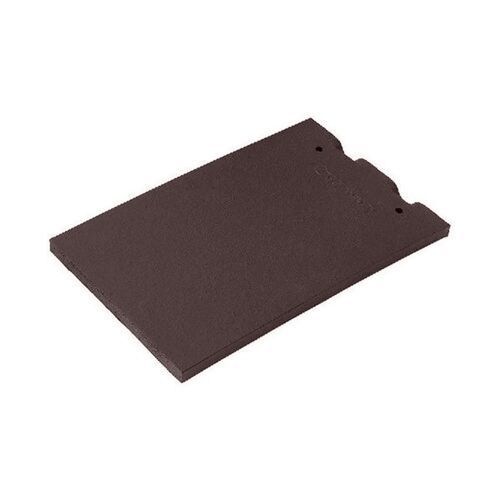

The five available classic finishes are Red, Light Mixed Brindle, Medium Mixed Brindle, Russet Mix, and Dark Antique. A fresh sixth option has recently been added to the range – this is Blue Brindle, a colour traditionally found in Staffordshire and across the Midlands. All of these colours of Rosemary tiles are aesthetically attractive and striking, guaranteed to make your property pop while providing maximum weather protection.



Size

265 x 165 mm



Minimum Pitch

35 º



Maximum Pitch

90 º

(subject to fixing specification)

Minimum Headlap

65 mm
35 mm

below 90 °
at 90 °

Maximum Headlap

88 mm



Minimum Gauge

88 mm



Maximum Gauge

100 mm
115 mm

below 90 °
at 90 °

Hanging Length

255 mm

(approx.)

Linear Cover of 1 Tile

165 mm



Covering Capacity (Net) tile /

60 tiles / m²
52 tiles / m²

below 90 °
at 90 °

Laid Weight

78 kg / m²

Below 90 ° Colours 80, 81, 82, 87, 91, 94

67 kg / m²

Below 90 ° Colours 93, 95

68 kg / m²

At 90 °

Colours 80, 81, 82, 87, 91, 94



58 kg / m²

At 90 °

Colours 93, 95

Weight per 1000 Tiles

1.32 tonnes

Colours 80, 81, 82, 87, 91, 94

1.11 tonnes

Colours 93, 95

Weight per Pallet

1.12 tonnes

Colours 80, 81, 82, 87, 91, 94

1.00 tonnes

Colours 93, 94

Battens Required

10 m / m²
8.7 m / m²

below 90 °
at 90 °

Batten Size

38 x 25 mm

Rafter centres up to 600 mm

Nail Size

40 x 2.65 mm



Tiles per Pallet

840

Colours 80, 81, 82, 87, 91, 94

880

Colours 93, 95

Tiles per Pack

14

Colours 80, 81, 82, 87, 91, 94

11

Colours 93, 95

Packs per Pallet

60

Colours 80, 81, 82, 87, 91, 94

80

Colours 93, 95
