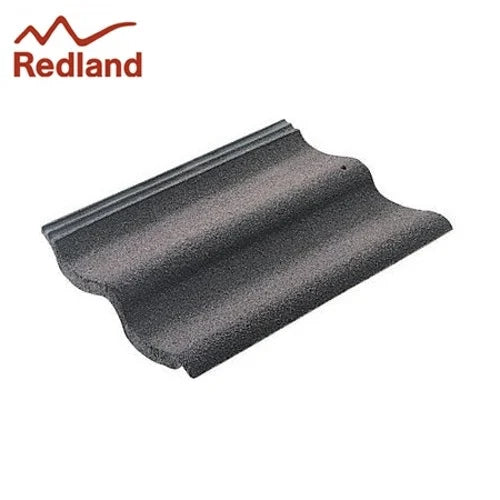

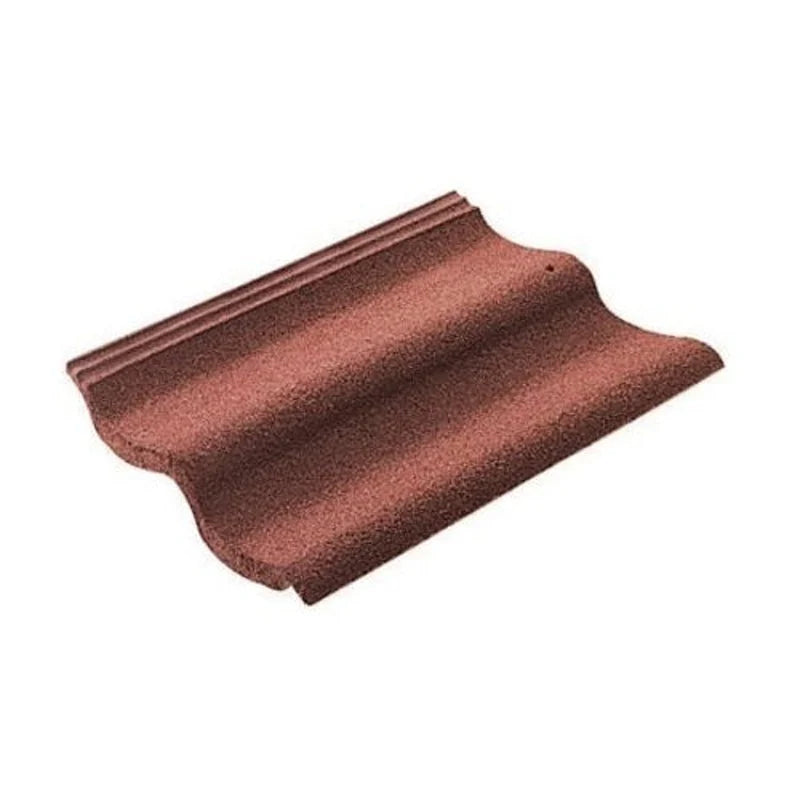

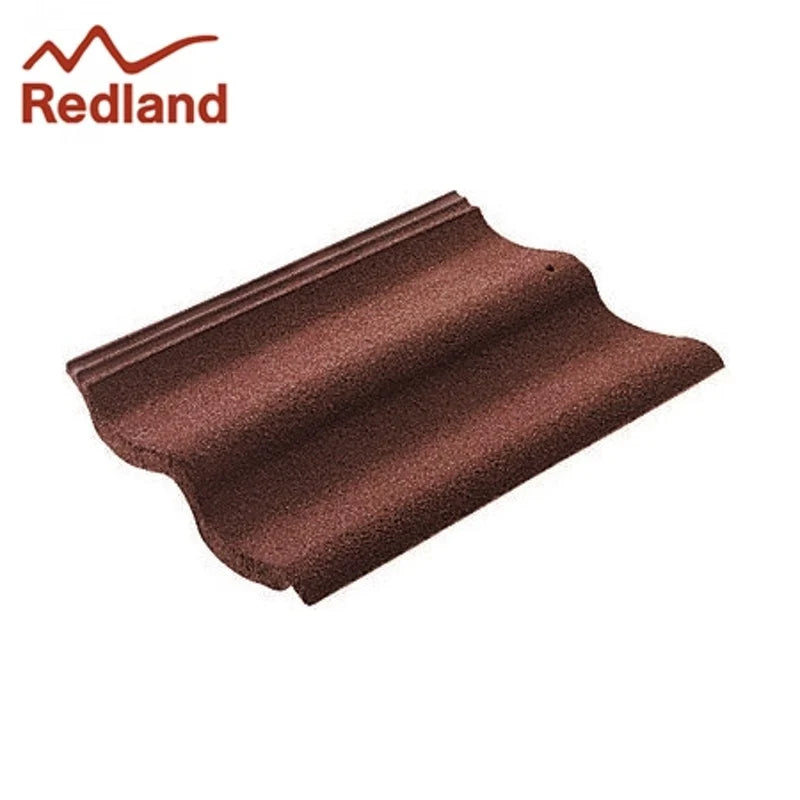

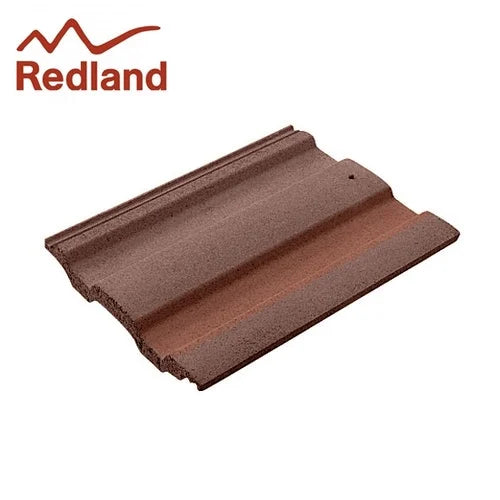

Redland Grovebury Concrete Roof Tile-Per pallet 216

A double pantile shape is quicker and easier to lay than a single pantile design. However, Grovebury concrete interlocking tiles still retains the traditional, gentle flowing lines of a classic pantile to blend easily and harmoniously into any environment.

A low pitch, wide variety of colours, and two different surface textures makes Grovebury a popular choice for both new build and renovation. Now also available in Charcoal Grey and Rustic Red.

Properties

Size: 418mm x 332mm.
Minimum pitch:
Through coloured.
15° at 100mm headlap.
17.5° at 75mm headlap.
Granular.
22.5° at 100mm headlap.
30° at 75mm headlap.
Maximum pitch: 90° - subject to fixing specification.
Maximum headlap: 125mm.
Minimum gauge: 293mm.
Maximum gauge: 318mm below 17.5°.
343mm at 17.5° and over.
Tile thickness: 29mm.
Coverage: 10.5 tiles/m2 at 318mm gauge.
9.7 tiles/m2 at 343mm gauge.
Weight: 4.7 tonnes/1000.
Batten size: 38mm x 25mm - rafter centres up to 450mm.
50mm x 25mm - rafter centres up to 600mm.
Battens required: 3.15m/m2 at 318mm gauge.
2.92m/m2 at 343mm gauge.
Nail size: 70mm x 3.75mm.
Tile finish: smooth - through coloured.
Tile profile: profiled.

BBA certified.
