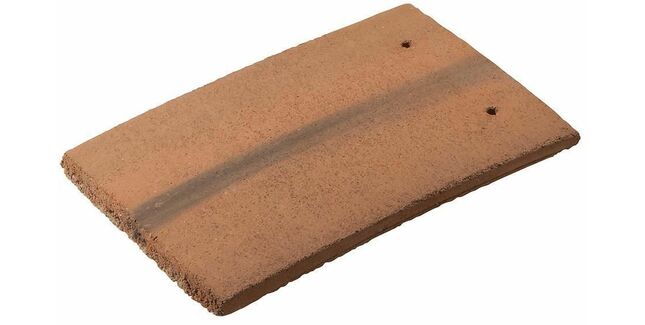

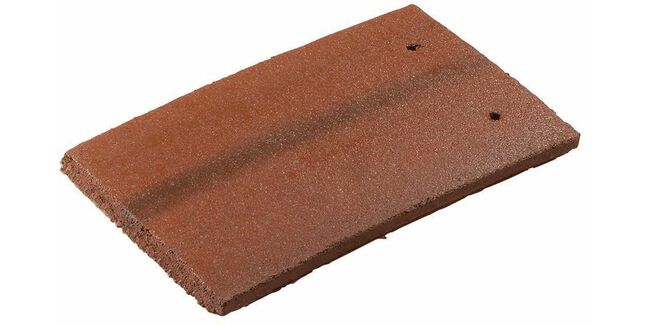

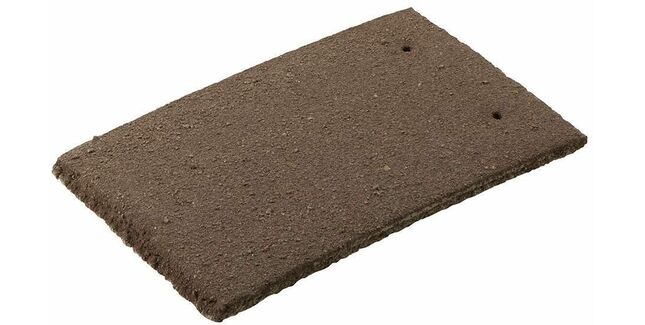

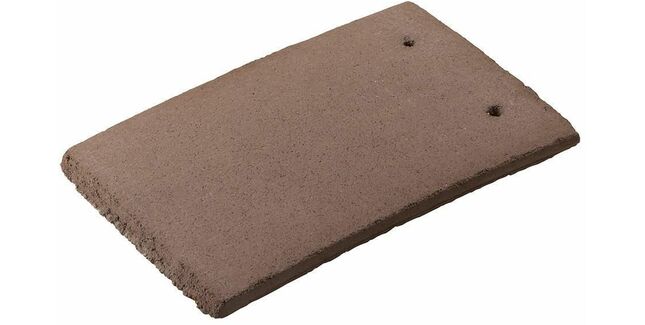

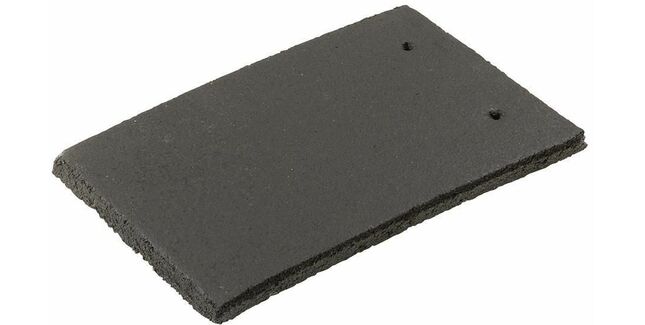

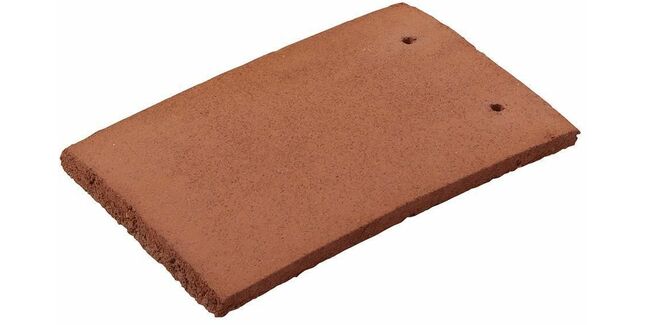

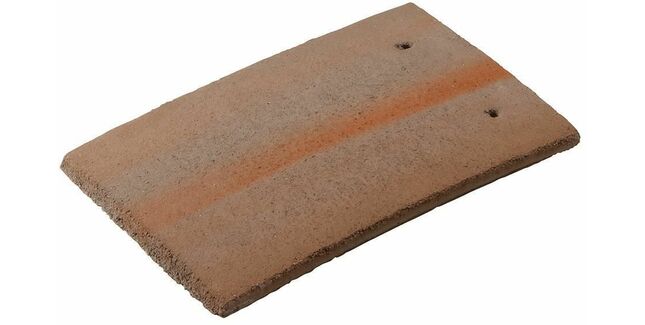

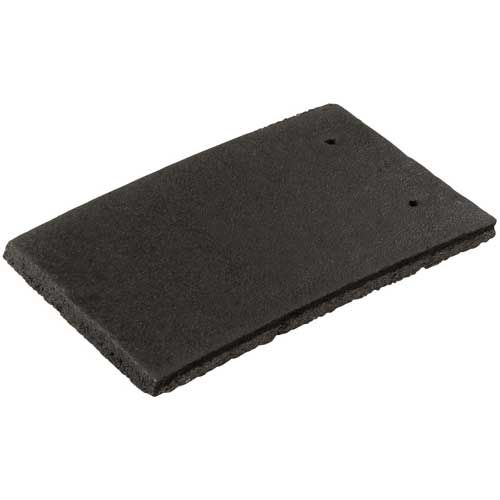

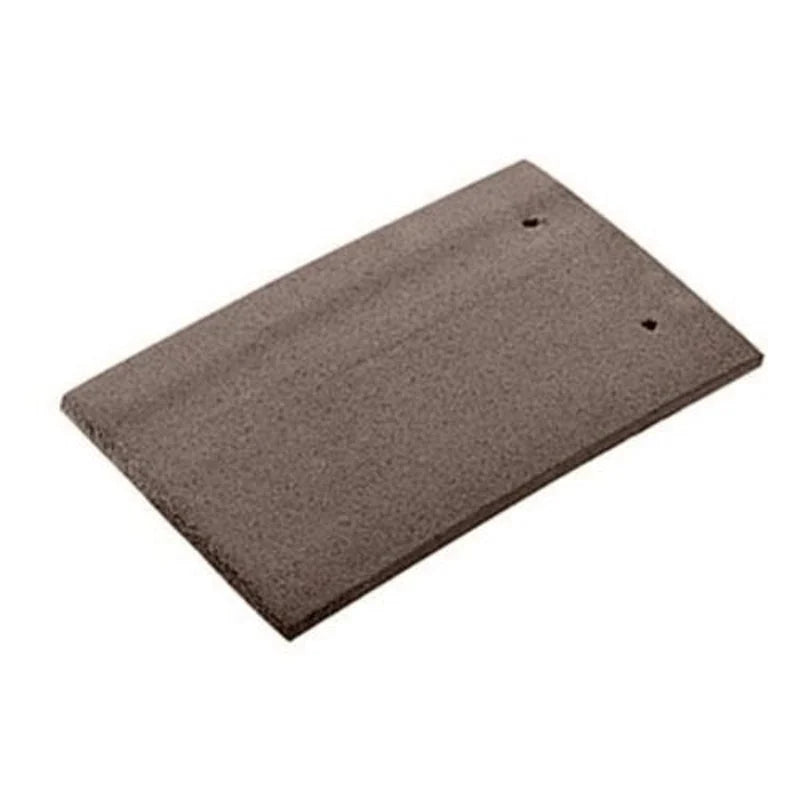

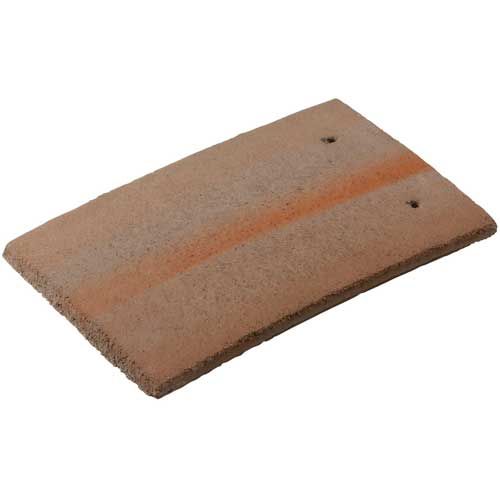

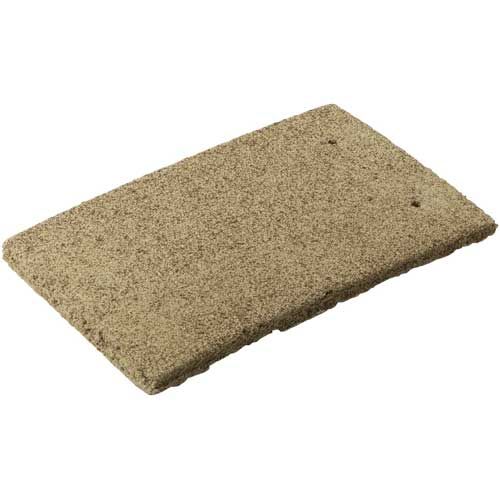

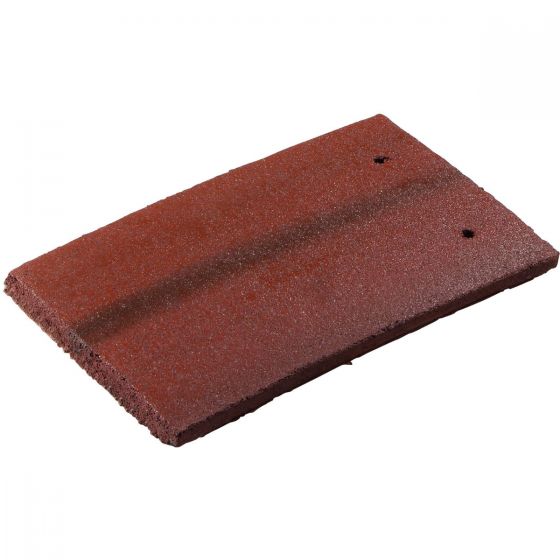

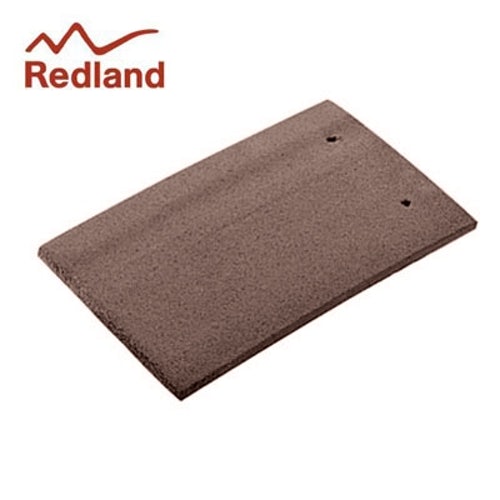

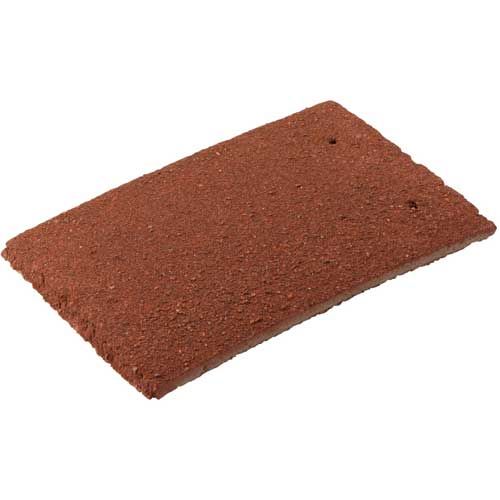

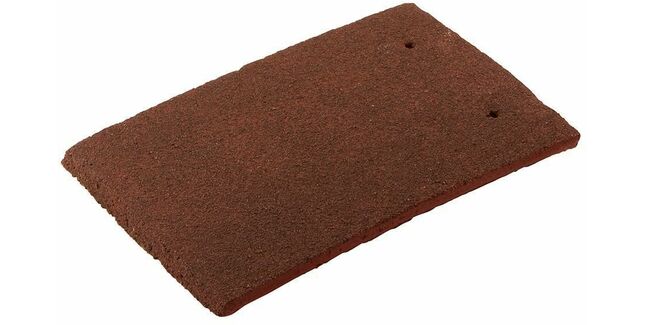

A cross-cambered concrete plain tile of traditional appearance, designed to be easy to fix. Available in a wide range of natural colours to offer a variety of design options.
Redland's range of concrete plain tiles are quick and easy to lay and offer great versatility and scope for varied effects. The tile features a double camber from side to side as well as from head to tail which textures the roof adding rich detail to a building. Tiles are available in a wide range of different surface finishes, including smooth, sanded and granular to blend with traditional roofing materials throughout the country.
Properties
Size : 266mm x 165mm. Minimum pitch : 35°. Maximum pitch : 90°. Coverage : 60 tiles/m2 - below 90°. 52 tiles/m2 - at 90°. Weight : 1.25 tonnes/1000. Batten size : 38mm x 25mm - rafter centres up to 600mm. Battens required : 10m/m2 - below 90°. 8.7m/m2 - at 90°.
