Marley Mendip Interlocking Tile - Pallet of 192
Marley Mendip Interlocking Tile - Pallet of 192
Delivery estimate 10–14 working days
Couldn't load pickup availability
A double pan tile design with elegant flowing lines, instant visual appeal and exceptional strength with the ability to perform at pitches as low as 15°. The Mendip interlocking tile is available in 7 stylish colours, and is a popular choice with discerning specifies and builders alike.
Mendip interlocking tiles can now perform at extended rafter lengths. See guidance below:
15° - 17.5° pitch with a rafter length up to and including 10m will require a 100mm headlap
17.5° pitch and above with a rafter length up to and including 10m will require a 75mm headlap
All of our concrete interlocking tiles can achieve an 'A+' rating (the lowest environmental impact) in the Building Research Establishment's Green Guide to Specification (* element ref: 812410007, 812410018, 812410049).
Large format, low pitch solution in a double pan tile profile
Features
- Low pitch solution
- Performs at rafter lengths up to and including 10m
- Excellent covering capacity
- Can achieve an A+ rating in the BRE Green Guide to Specification*
- An 'Excellent' certification for BES 6001
Specification

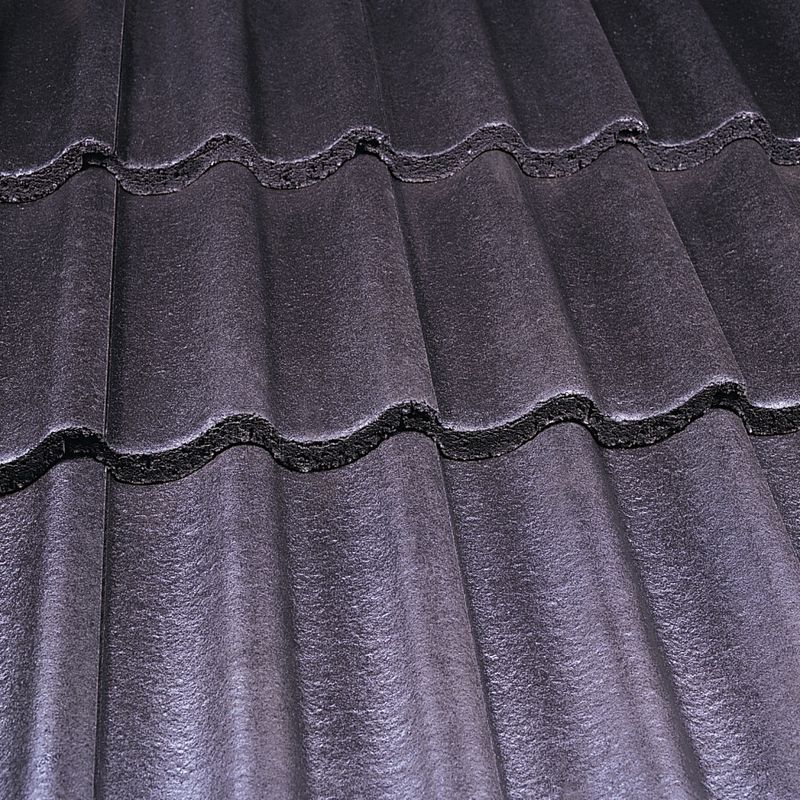

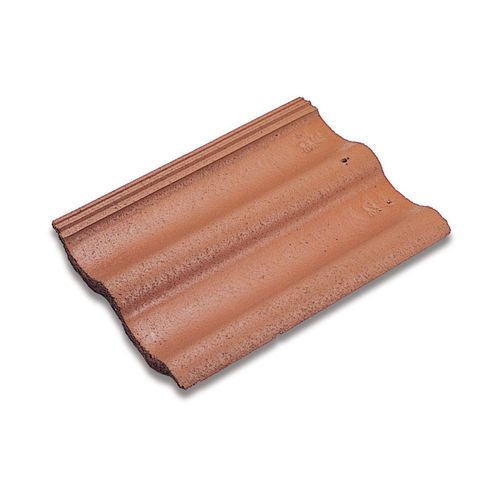

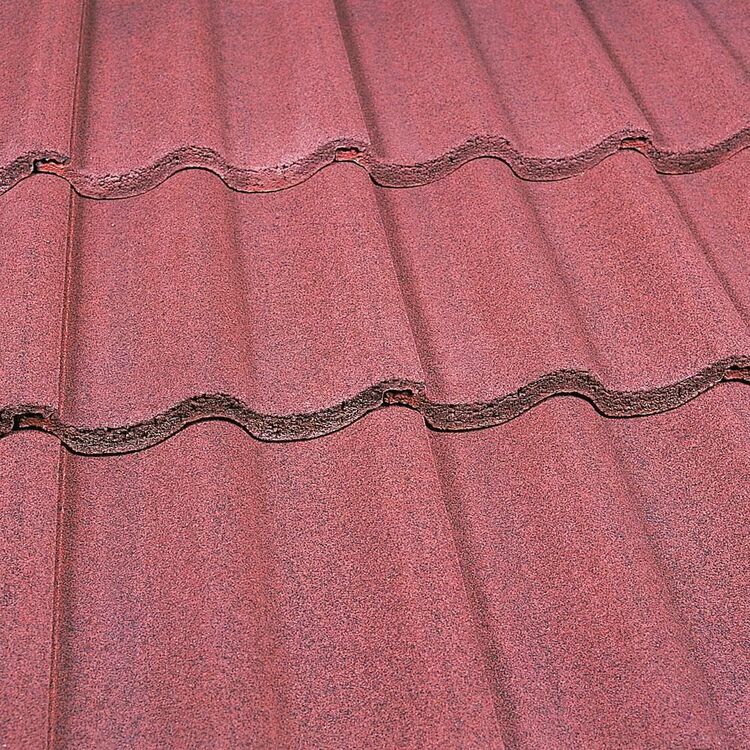

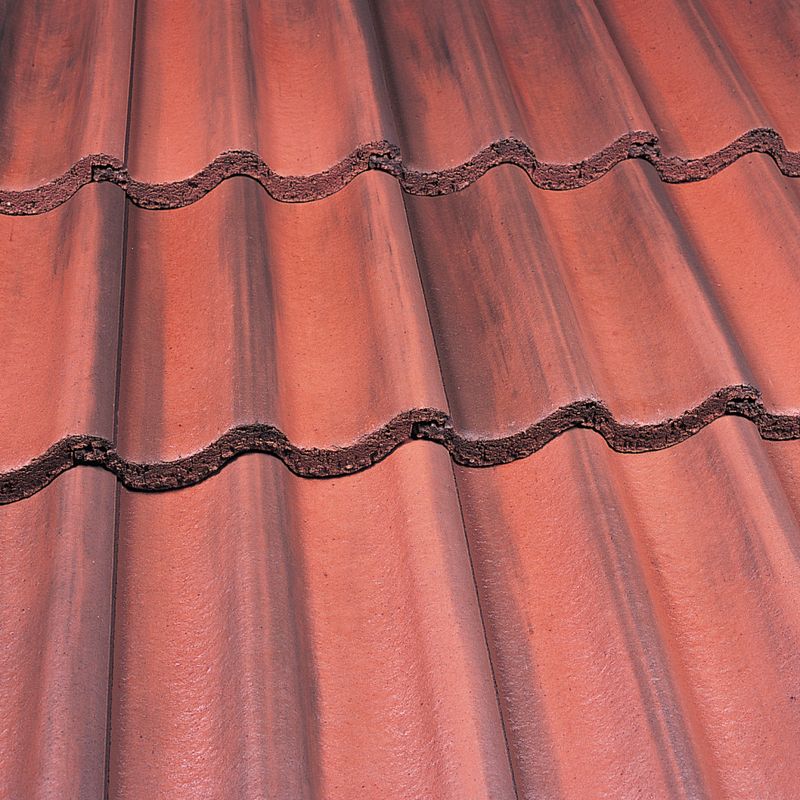

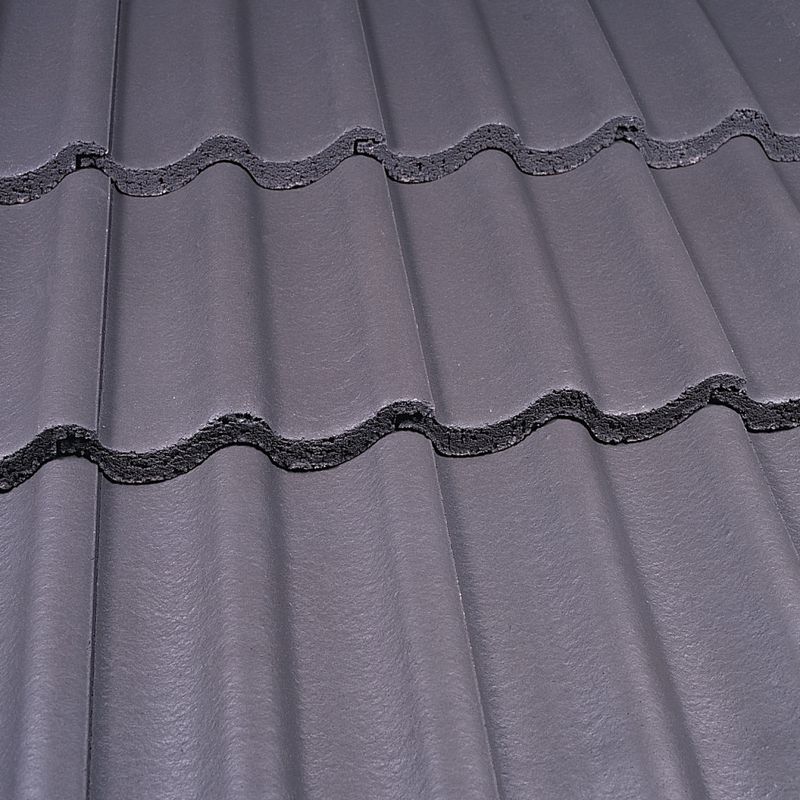

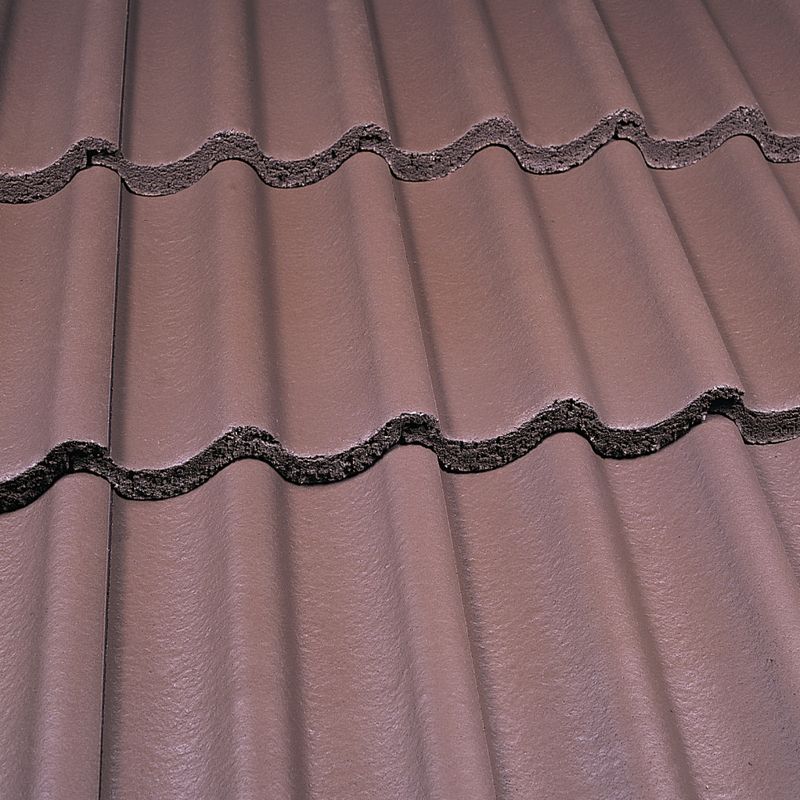

| Colour | MA12320: Anthracite (s) MA12326: Smooth Grey (s) MA12328: Antique Brown (g) MA12338: Smooth Brown (s) MA12339: Old English Dark Red (s) MA12352: Mosborough Red (s) MA12380: Dark Red (g) |
| Material | Concrete |
| LowPitch (Y|N) | Y |
| Renovation / Refurbishment (Y|N) | Y |
| New Build (Y|N) | Y |
| Extension (Y|N) | Y |
| Vertical (Y|N) | Y |
| Modern Style (Y|N) | N |
| Classic Style (Y|N) | Y |
| Availability (STD|MTO) | STD |
| Product Dimensions (L x W x T) | 420mm x 330mm x 27mm |
| Cover width + tol | 298mm |
| Covering capacity /m2 min headlap | 9.7 |
| Weight of unit approx | 4.92kg |
| Fire resistance | Yes |
| Laid straight bond (Y|N) | Y |
| Laid broken bond (Y|N) | Y |
| Pieces on pallet | 192 |
| Size of Tile |
420mm x 330mm |
| Minimum Pitch |
15° Smooth (100mm headlap) 17.5° Smooth (75mm headlap) 30° Granular (75mm headlap) 25° Granular (100mm headlap) |
| Maximum Pitch |
90° |
| Minimum Headlap |
75mm |
| Maximum Gauge |
345mm |
| Cover Width |
298mm (nominal) |
| Covering Capacity |
9.7 tilesm_ at 75mm headlap 10.5 tilesm_ at 100mm headlap |
| Weight of Tiling |
46kg/m_ (0.45 Kn/m_) at 75mm headlap 49kg/m_ (0.48 Kn/m_) at 100mm headlap |
| Battens Required |
2.9 lin.m/m_ at 75mm headlap 3.1 lin.m/m_ at 100mm headlap |
| Batten Size Recommended |
38x 25mm for rafters/supports not exceeding 450mm centres 50 x 25mm for rafters/supports not exceeding 600mm centres |
| Tile Nails |
70mm x 3.35mm |
| Hanging length |
397mm (nominal) |
