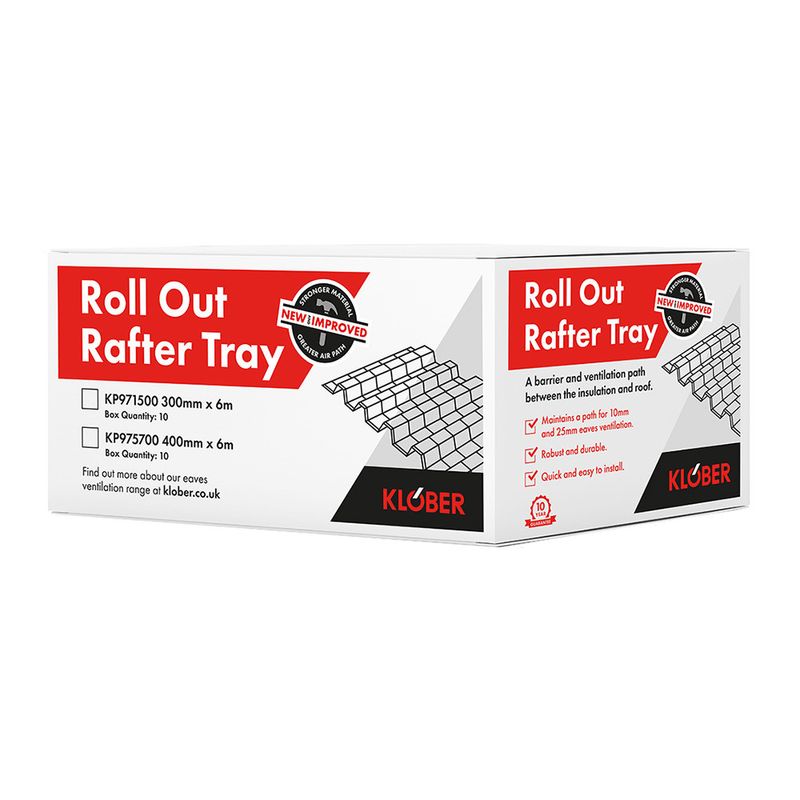

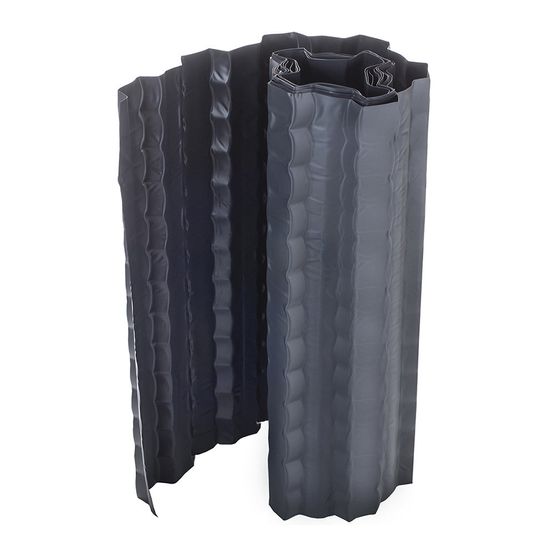

Klober 800mm x 6m Roll Out Rafter Tray - Pack of 10

Roll Out Rafter trays are a simple but effective way of preventing loft insulation from being pushed up to the underside of the roofing underlay and will maintain a clear ventilation path into the roof void from the eaves. The rafter trays will be suitable for 10,000 mm²/m or 25,000 mm²/m continuous eaves ventilation.

Properties

Length : 6m.
Width : 800mm.
Height : 55mm.
Weight : 1.28kg each.
Material : black PVC.

Installation

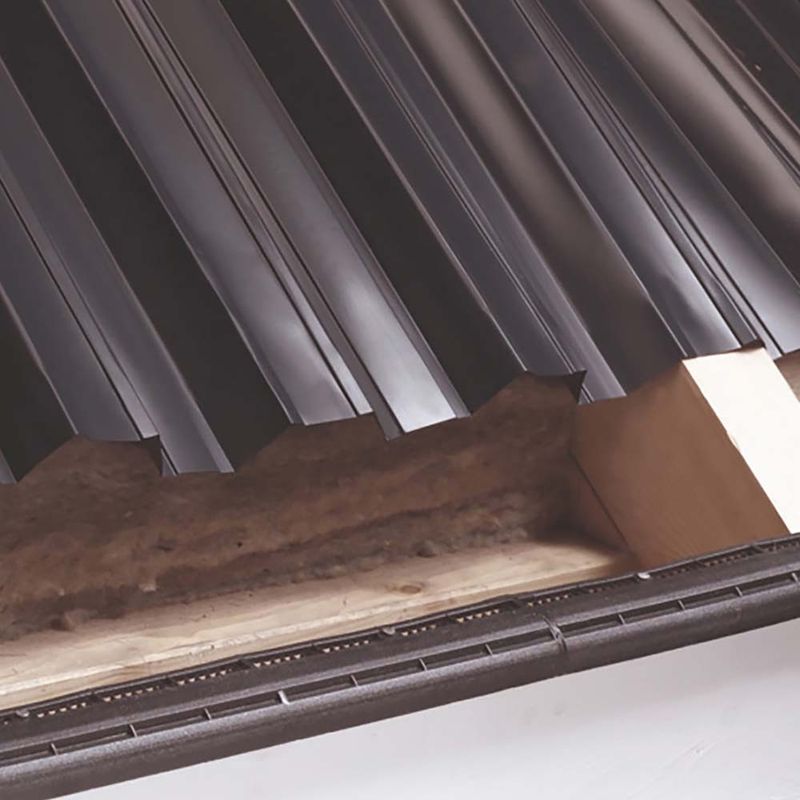

The roll out trays are rolled out over the rafters in the correct position to provide a clear ventilation channel above the roof insulation and fixed into the rafters using corrosion resistant clout head nails or staples. For low pitched roofs two trays may be joined together and if using soffit ventilation the bottom edge of the tray must be kept minimum 25mm from the back of the fascia board.

Application
Suitable for :
800mm rafter centres.
New build and re-roofing applications.
Roofing pitches above 12.5 degrees.
