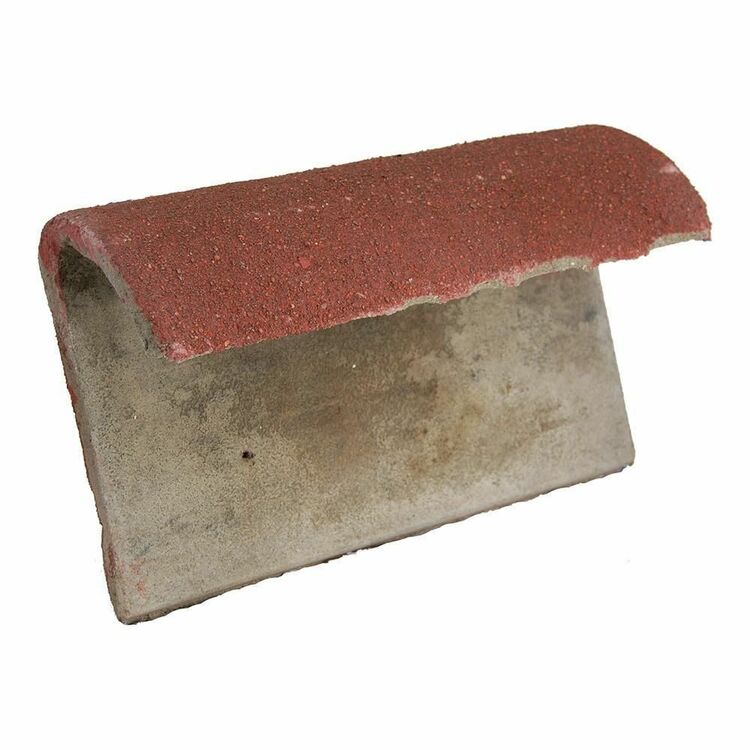

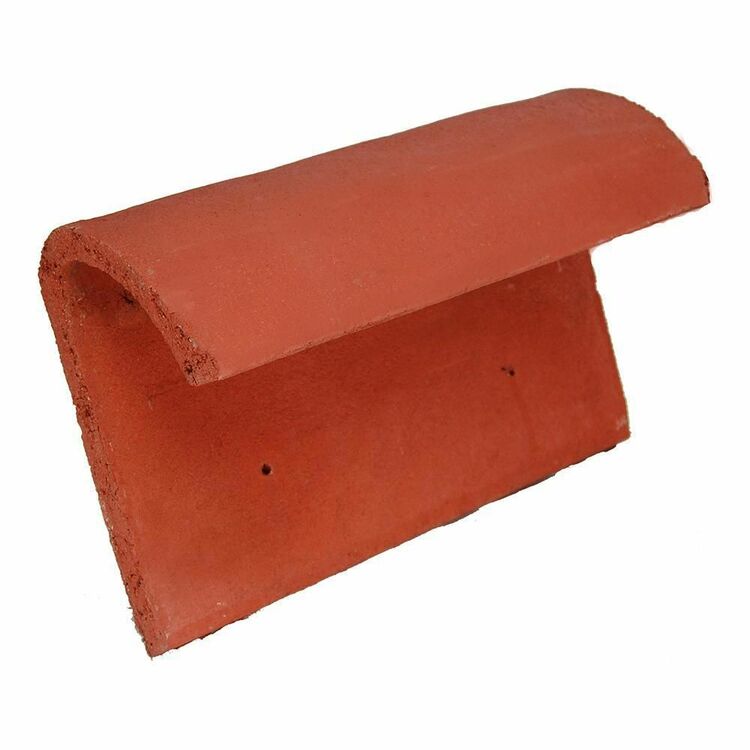

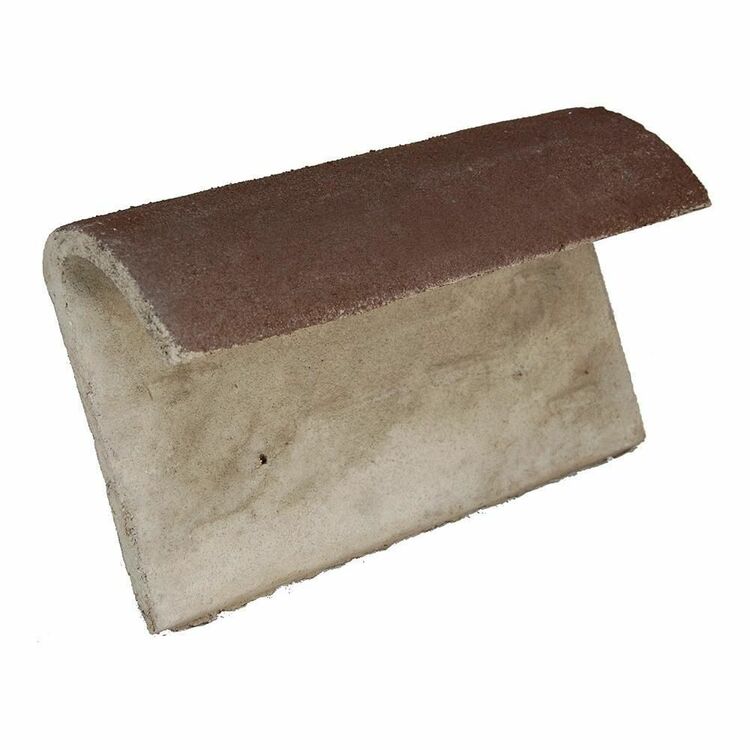

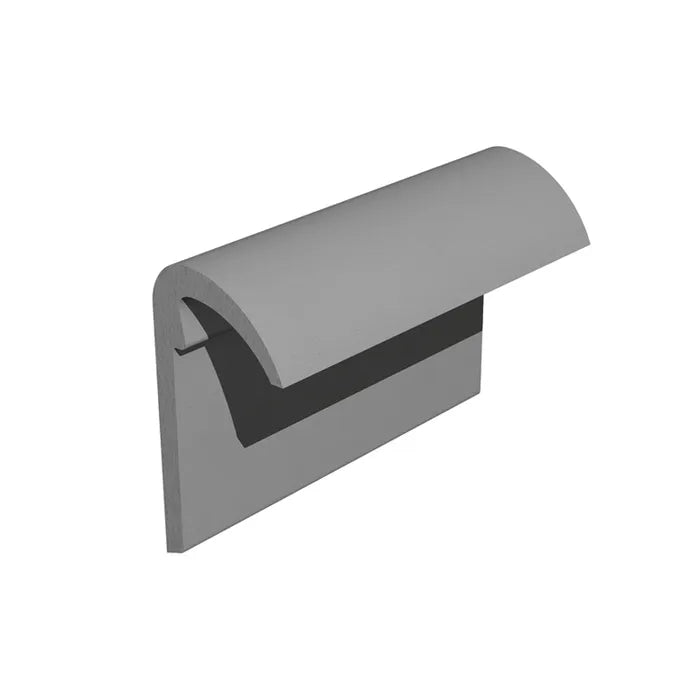

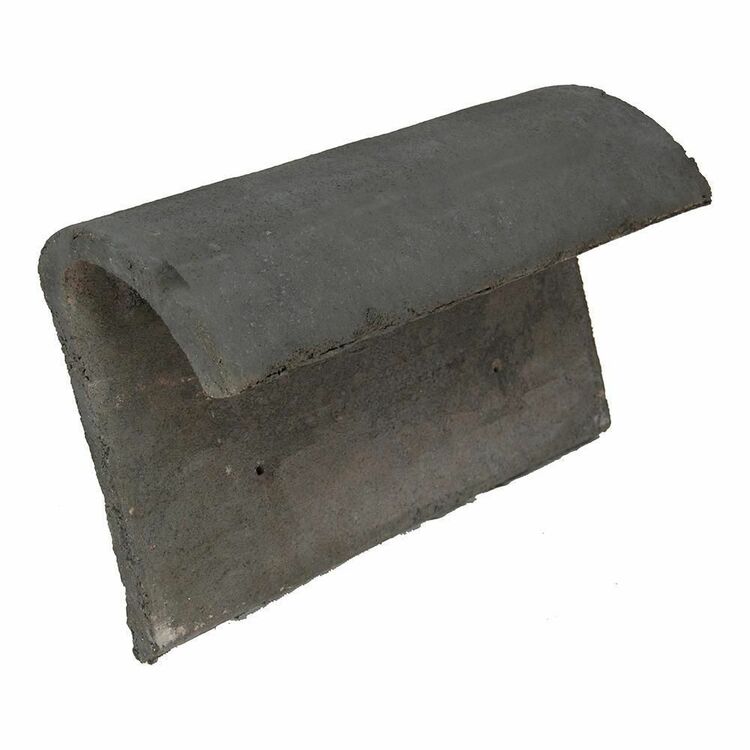

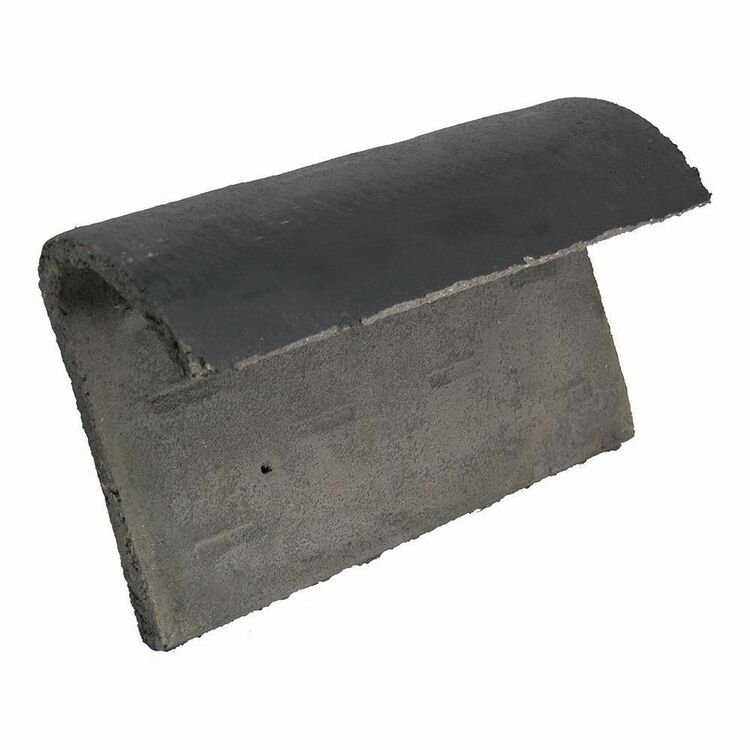

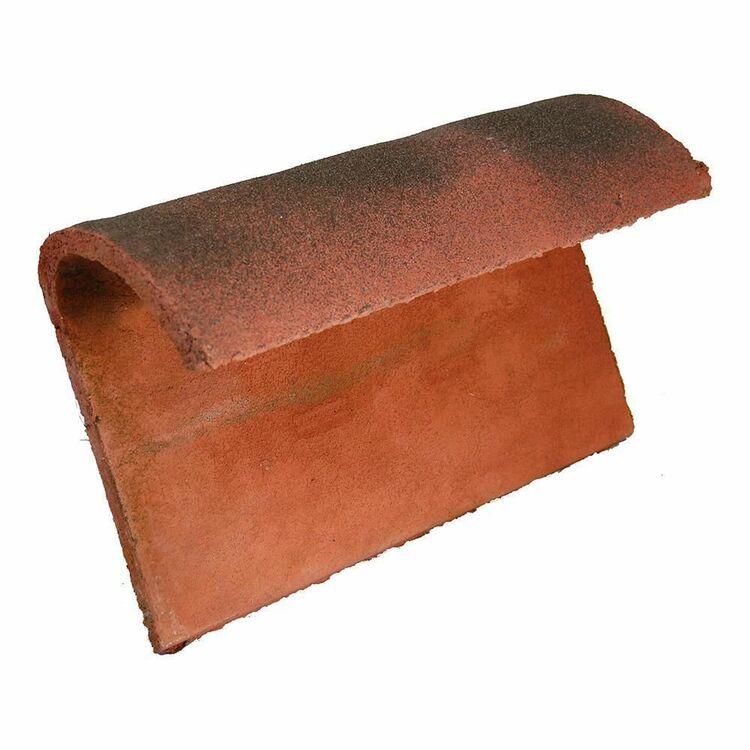

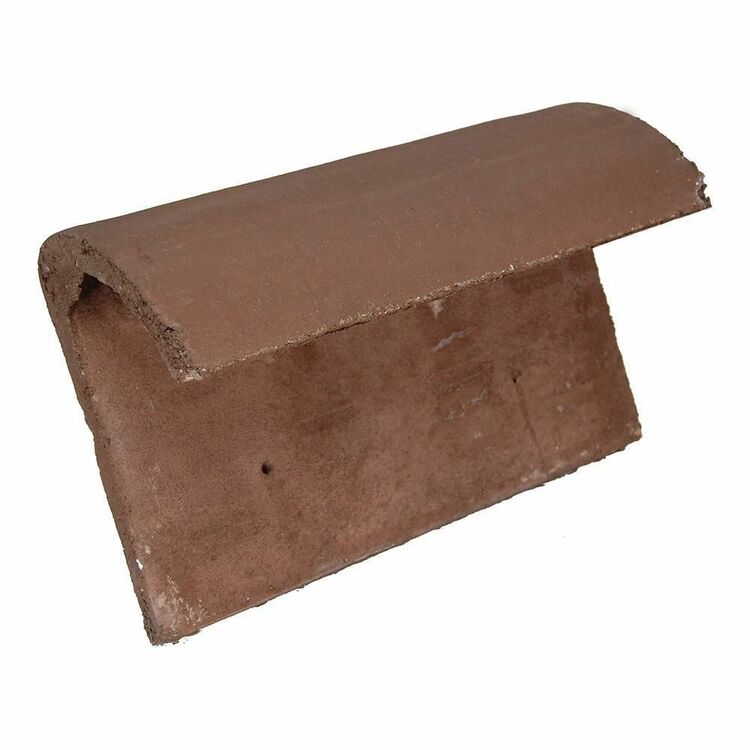

Redland Half Round Mono Ridge

Dimension: 450mm x 154mm

Specifications

Minimum pitch is the minimum pitch of the tile or slate.

Maximum pitch is:

• 44.5 for Stonewold Mk II
• 47.5 for Norfolk Pantile
• 52.5 for Regent
• 57.5 for Cambrian, Landmark Double Pantile and Grovebury
• 60 for Richmond, Saxon and Landmark Slate
• 62.5 for Mini Stonewold
• 65 for Renown
• 67.5 for Landmark Double Roman, 50 Double Roman and Redland 49
• 70 for Plain Tile and Heathland
• 72.5 for Rosemary Clay (using Landmark Monoridge)

When used with rigid sarking and counterbattens the maximum pitch is:

• 40 for Rosemary Clay (using Landmark Monoridge)
• 44.5 for Stonewold Mk II
• 45 for Landmark Double Pantile, Regent, Norfolk Pantile and Grovebury
• 60 for Richmond, Saxon, Landmark Slate and Mini Stonewold
• 65 for Cambrian, Plain Tiles, Heathland, Landmark Double Roman, 50 Double Roman, Renown and Redland 49
